Machined Connector Pins in PCB Assembly: Best Practices

What Are Connector Pins? A Complete Introduction

Connector pins are the fundamental building blocks of every electrical and electronic interconnect system. Whether in a consumer smartphone, an industrial robot, a life-saving medical device, or a satellite in orbit, connector pins serve one irreplaceable function: creating a reliable, low-resistance electrical pathway between two or more components.

At their core, connector pins are precision-engineered conductive elements — typically metallic — designed to mate with a corresponding socket, receptacle, or terminal. The quality, material, geometry, and finish of a connector pin directly determine the performance, longevity, and safety of the entire electrical system it serves.

As electronic systems grow smaller, faster, and more complex, the demand for high-precision connector pins has never been greater. Understanding the full scope of connector pin technology is essential for engineers, procurement specialists, and product designers who need to make informed decisions about their interconnect solutions.

Types of Connector Pins: A Deep Dive

The connector pin landscape is broad, with each type engineered to address specific electrical, mechanical, and environmental requirements. Here is a detailed overview of the most widely used connector pin types:

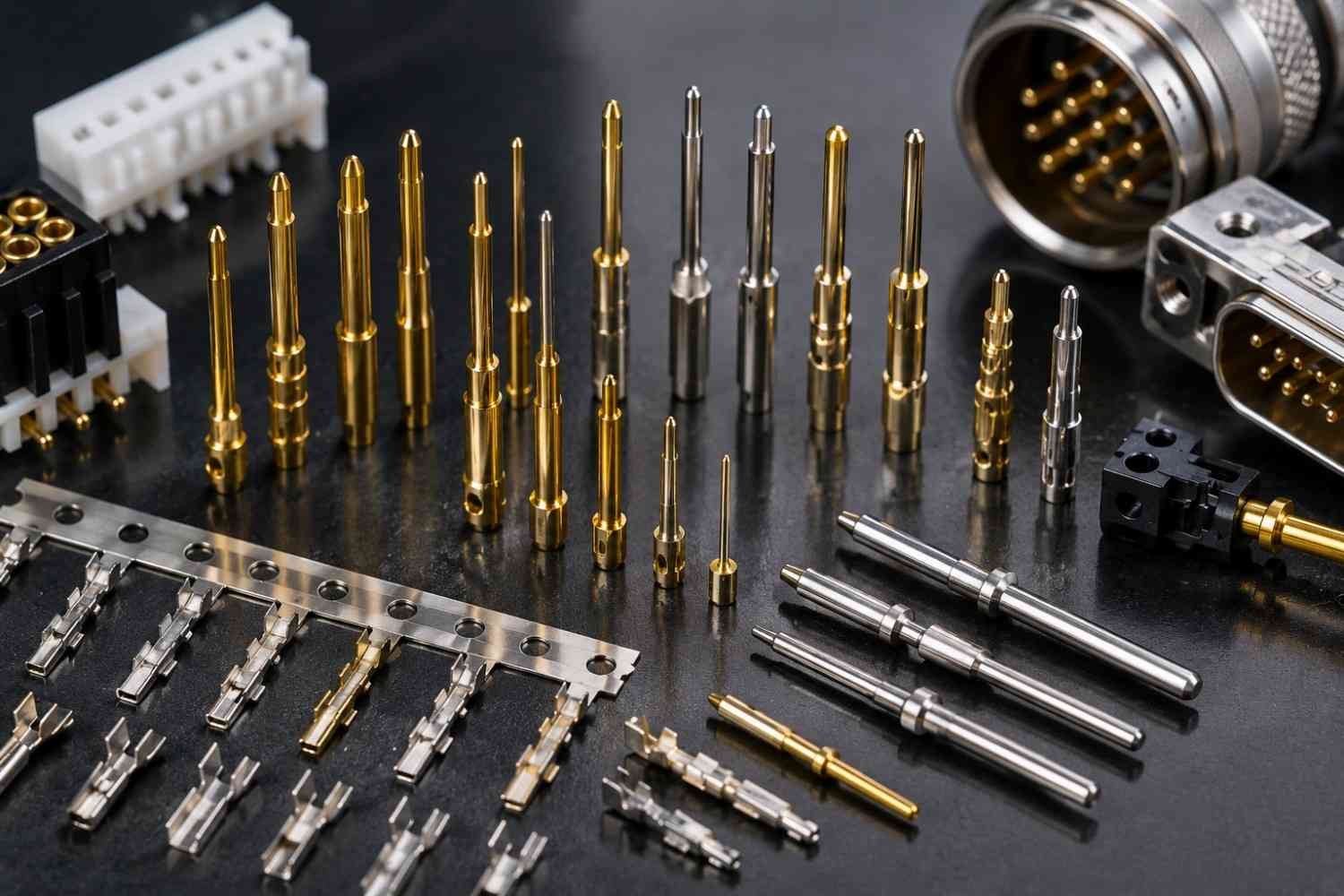

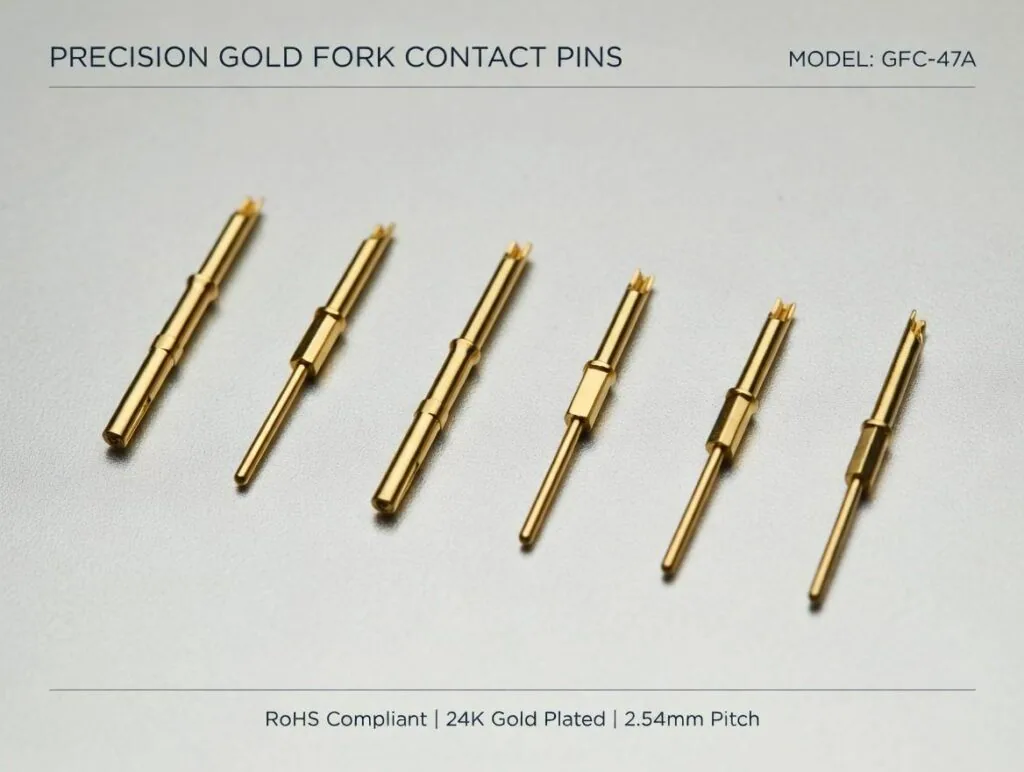

1. 🔧 Machined (Turned) Connector Pins

Manufactured via CNC-turning or screw-machining from solid metal rods, machined connector pins offer the highest dimensional accuracy available. These are the gold standard for:

High-reliability PCB-to-PCB interconnects
Military and aerospace applications (MIL-SPEC)
High-cycle applications requiring 10,000+ mating cycles
IC sockets and test & measurement equipment

Tolerances as tight as ±0.005 mm make machined connector pins ideal wherever signal integrity and contact resistance consistency are non-negotiable.

2. 🗜️ Stamped & Formed Connector Pins

Produced by stamping metal sheets into complex shapes, these connector pins offer a cost-effective solution for high-volume applications:

Automotive wire harnesses and ECU connectors
Consumer electronics and white goods
Power distribution boards
Standard USB, HDMI, and audio connectors

While not as dimensionally precise as machined pins, stamped connector pins excel in mass production environments where cost-per-unit is critical.

3. ⚡ Press-Fit Connector Pins

Press-fit connector pins feature a compliant zone that deforms slightly upon insertion into a PCB through-hole, creating a gas-tight, solderless connection:

Ideal for backplanes and high-density server boards
Used extensively in automotive ECUs and power modules
Eliminates solder joint reliability concerns
Supports rework and field replacement

4. 🌀 Spring-Loaded (Pogo) Connector Pins

Spring-loaded connector pins use an internal spring mechanism to maintain constant contact pressure, compensating for mechanical tolerances and vibration:

Battery charging contacts in portable devices
Bed-of-nails test fixtures
Wearable electronics and IoT devices
Rotating or sliding interface assemblies

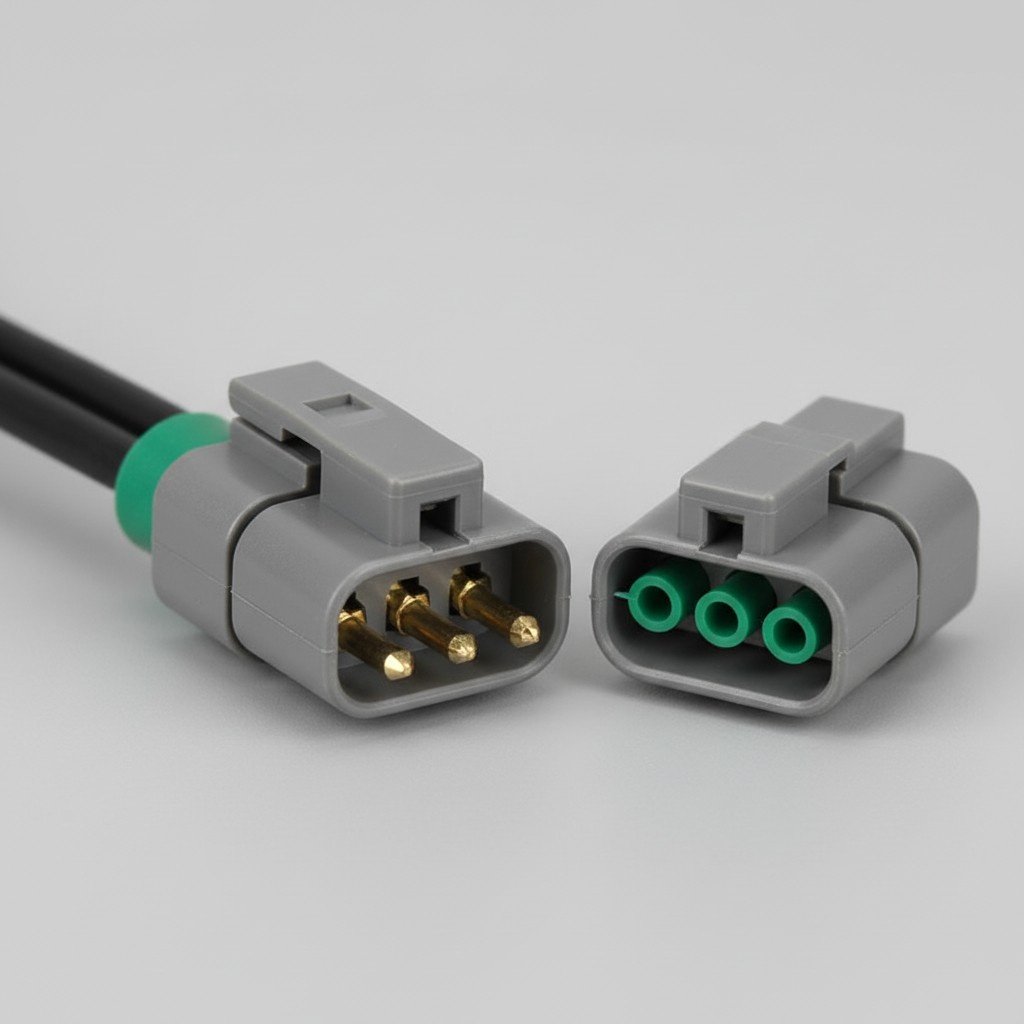

5. 🔌 Crimp Connector Pins

Crimp-style connector pins are attached to wire ends through a mechanical compression process, creating a cold-weld gas-tight joint without soldering:

Automotive and aerospace wire harnesses
Industrial control panels and PLCs
Military field-deployable systems
High-vibration environments where solder joints may fatigue

6. 🏗️ Pin Headers & Male/Female Connector Pins

The ubiquitous pin header connector pins — single or double row, straight or right-angle — are found in virtually every PCB development environment:

Arduino, Raspberry Pi, and development boards
Sensor module interconnects
JTAG, SWD, and programming interfaces
Board-to-board stacking configurations

🪨 Connector Pin Materials: The Foundation of Performance

The material composition of a connector pin directly governs its electrical conductivity, mechanical strength, corrosion resistance, and temperature performance. Selecting the right material is one of the most critical engineering decisions in connector pin specification.

Material	Conductivity	Strength	Corrosion Resistance	Best Application
Brass (C360)	Good	Moderate	Moderate	General-purpose connector pins
Phosphor Bronze	Good	High	Good	High-cycle spring contact pins
Beryllium Copper	Excellent	Very High	Good	RF, high-frequency, precision pins
Stainless Steel	Moderate	Very High	Excellent	Harsh environment connector pins
Copper Alloy C151	Excellent	Moderate	Moderate	High-current power pins

Surface Plating for Connector Pins

The base material alone rarely suffices — surface plating enhances performance dramatically:

🥇 Gold (Au): The premium choice for signal-level connector pins; 0.2–1.27 µm over a nickel underplate delivers ultralow contact resistance and outstanding oxidation immunity
🥈 Tin (Sn) / Tin-Lead: Cost-efficient for power connector pins; excellent solderability; ensure whisker mitigation strategies for pure tin
⚪ Silver (Ag): Highest conductivity of all metals; used in high-current and RF connector pins; requires tarnish-prevention strategies
🔵 Nickel (Ni): Hard, wear-resistant barrier coating; standard underplate for most plated connector pins
🟤 Palladium-Nickel (PdNi): A cost-effective gold alternative for connector pins in high-cycle applications

🏭 Connector Pin Manufacturing: Precision at Every Stage

The manufacturing process for high-quality connector pins is a multi-stage operation where precision, process control, and quality assurance work in concert.

Stage 1 — Raw Material Selection & Verification

Every connector pin production run begins with rigorous incoming material inspection:

Chemical composition analysis via XRF (X-Ray Fluorescence) spectroscopy
Mechanical property verification — tensile strength, hardness, elongation
Dimensional inspection of raw rod or sheet stock
Surface condition assessment for defects or contamination

Stage 2 — Precision Machining or Stamping

CNC Turning (Machined Pins): Multi-axis CNC Swiss-type lathes hold tolerances to ±0.005 mm across millions of connector pin units
Progressive Die Stamping: High-speed presses form connector pins from strip metal at rates exceeding 500 parts/minute
Burr Removal: Vibratory deburring, electrochemical deburring, or precision tumbling ensures smooth surfaces that prevent connector wear
Annealing: Heat treatment relieves internal stresses introduced during forming — critical for beryllium copper connector pins

Stage 3 — Electroplating

Alkaline cleaning and acid activation to prepare the connector pin surface
Nickel underplate deposition — typically 1.27–2.54 µm for a diffusion barrier
Final plate deposition (gold, tin, silver, PdNi) to specified thickness
In-process plating thickness verification via X-Ray Fluorescence (XRF)
Adhesion and porosity testing per ASTM B571 and EIA-364 standards

Stage 4 — Quality Control & Testing

100% dimensional gauging or statistical sampling per AQL standards
Contact resistance measurement — typically <10 mΩ for signal connector pins
Insertion/withdrawal force testing per EIA-364-13
Salt spray / humidity testing for corrosion resistance validation
Thermal shock cycling to verify plating adhesion integrity

🎯 Connector Pin Applications by Industry

Connector pins are mission-critical components across virtually every major industry. Here is how different sectors depend on precision connector pins:

✈️ Aerospace & Defense

MIL-DTL-55302 and MIL-DTL-83513 qualified machined connector pins
Circular connector pins for avionic rack systems (MIL-DTL-38999)
Gold-plated connector pins for flight-critical signal paths
Radiation-hardened connector pins for satellite payloads

🏥 Medical & Life Sciences

Biocompatible connector pins for implantable devices
High-reliability connector pins in surgical robotics and imaging systems
Sterilization-resistant pins for reusable instrument interfaces
Ultra-miniature connector pins for endoscopes and catheter-based devices

🚗 Automotive & EV

High-current power connector pins for EV battery management systems
Sealed crimp connector pins for under-hood environments
High-speed data connector pins for ADAS and infotainment systems
Tin-plated connector pins for CAN bus and LIN bus wiring harnesses

🏭 Industrial Automation & Robotics

Heavy-duty power connector pins for servo drives and motor controllers
Modular fieldbus connector pins (PROFIBUS, EtherCAT, IO-Link)
Spring-loaded connector pins for tool-change robotic end-effectors
Corrosion-resistant pins for food processing and wash-down environments

📡 Telecommunications & Data Centers

High-speed differential pair connector pins for 100G/400G Ethernet
Controlled-impedance connector pins for backplane systems
SFP, QSFP, and OSFP module connector pins
High-density mezzanine connector pins for blade server architectures

⚠️ Common Connector Pin Challenges & Engineering Solutions

Even the most carefully specified connector pins face real-world challenges. Understanding these failure modes — and their solutions — is key to designing reliable interconnect systems.

Challenge	Root Cause	Engineering Solution
Fretting Corrosion	Micro-vibration causes oxide buildup at contact interface	Specify gold-plated connector pins; apply contact lubricant
Contact Resistance Drift	Surface oxidation or contamination over time	Use noble metal plating (Au, PdNi) on connector pins
Mechanical Wear	Excessive mating cycles degrades contact surface	Specify hard gold plating (HV 130–200) for high-cycle pins
Tin Whisker Growth	Pure tin plating develops conductive whiskers	Use tin-lead or matte tin with reflow; specify whisker-tested pins
Connector Pin Corrosion	Exposure to humidity, salt, or chemicals	Use sealed housings; specify nickel or gold plated pins
Signal Integrity Issues	Impedance mismatch at pin-to-PCB interface	Design controlled-impedance footprints; use matched connector pins
Thermal Derating	Excessive current causes pin overheating	Derate current per thermal testing; choose larger pin cross-sections
Misalignment Damage	Off-angle mating bends or breaks pins	Use guide pins/posts; specify chamfered lead-ins on connector pins

📏 Connector Pin Quality Standards & Certifications

Specifying connector pins to recognized international standards ensures interoperability, reliability, and regulatory compliance:

📋 IPC-A-610: Acceptability of Electronic Assemblies — solder joint and assembly quality for PCB connector pins
📋 IPC-2221: Generic PCB Design Standard — pad, hole, and annular ring specifications for through-hole connector pins
📋 EIA-364: Electrical Connector and Socket Test Procedures — comprehensive testing for all connector pin types
📋 MIL-DTL-55302 / MIL-DTL-83513: Military-grade machined connector pins for defense applications
📋 UL 486A/B: Wire connectors and soldering lugs — relevant to crimp connector pins
📋 RoHS / REACH Compliance: Environmental compliance requirements for connector pin materials and plating
📋 IATF 16949: Automotive-sector quality management — governs automotive connector pin production
📋 ISO 9001:2015: Quality Management Systems — foundational certification for connector pin manufacturers

🚀 Future Trends in Connector Pin Technology

The connector pin industry is rapidly evolving in response to emerging technology demands. Key trends shaping the next generation of connector pins include:

🔬 Ultra-Miniaturization: Connector pins with pitches below 0.3 mm for next-gen wearables, hearing aids, and implantables
⚡ High-Speed Signal Integrity: Connector pins engineered for 112 Gbps PAM4 and beyond in data center applications
🔋 High-Power EV Connector Pins: Pins rated for 800V+ and 500A+ for ultra-fast EV charging infrastructure
🌡️ Extreme Environment Performance: Connector pins operating reliably from –65°C to +200°C for next-gen automotive and aerospace
♻️ Sustainable Materials: Development of RoHS-compliant, low-impact plating alternatives to reduce environmental footprint of connector pin production
🤖 AI-Driven Quality Control: Machine vision and deep learning systems enabling 100% defect detection in high-speed connector pin manufacturing
🧲 Magnetic & Pogo-Hybrid Connector Pins: Self-aligning magnetic connector pins for tool-free, blind-mate connections in robotics and consumer devices

📊 Connector Pin Selection: Quick Reference Guide

Requirement	Recommended Connector Pin Type	Suggested Plating
High-cycle signal interface	Machined / Turned Pin	Hard Gold over Nickel
Low-cost, high-volume power	Stamped & Formed Pin	Tin or Tin-Lead
Solderless PCB attachment	Press-Fit Compliant Pin	Tin or Gold
Vibration-resistant contact	Spring-Loaded Pogo Pin	Gold over Nickel
Field-wiring / harness	Crimp Connector Pin	Tin or Silver
Prototyping / development	Pin Header	Tin or Gold Flash
