When a CNC-machined part leaves the spindle, how do you know it meets spec? For precision manufacturers like MetalworksPlus (MW+), the answer is CMM inspection — coordinate measuring machine inspection. A CMM uses a precision probe to scan critical dimensions and geometries across the entire part, producing a digital dimensional inspection report that engineers can review before approving a shipment.
CMM inspection provides measurement accuracy down to ±0.001 mm and full GD&T verification, replacing manual tools that check only individual features. For industries like aerospace and medical devices, this QC report is not optional — it is a contractual requirement.
Key Takeaways
- CMM inspection measures part geometry in 3D with sub-micron precision.
- Inspection reports verify every critical dimension before part approval.
- ISO 9001, AS9100D, and ISO 13485 certified shops rely on CMM data.
- MW+ provides full inspection reports on request with every CNC order.
Quick Facts About CMM Inspection at MW+
| Fact | Detail |
| Typical Working Tolerance | ±0.005 mm (±0.0002 in) |
| Maximum Precision | ±0.001 mm with temperature-controlled environment |
| Materials Inspected | Aluminum, steel, stainless, titanium, brass, plastics |
| Industries Served | Aerospace, medical, automotive/EV, energy, robotics, electronics |
| Report Format | Digital PDF with GD&T callouts, pass/fail per feature |
| Lead Time Impact | None — inspection runs parallel to production |
What Is CMM Inspection in CNC Machining?
CMM inspection is the process of using a motorized probe to contact or scan a machined part’s surfaces, recording thousands of data points that map the part’s actual geometry against the CAD model. Unlike handheld tools that measure one dimension at a time, a CMM measures every feature — holes, pockets, contours, threads, and datum planes — in a single automated cycle.
The result is a CNC quality control report that flags every out-of-tolerance feature before the part reaches your receiving dock. For MW+, this is the final gate in a multi-step quality process that begins at material receiving and continues through in-process checks, first article inspection, and documentation.
How Does a CMM Machine Measure Part Accuracy?
A CMM operates on a simple principle: touch the part, record the position. The machine carries a probe — either a contact stylus or a non-contact laser sensor — along three orthogonal axes (X, Y, Z). Each touch generates a coordinate point, and software compares these points against the nominal CAD values to calculate deviations.
MW+ uses bridge-type CMMs with scanning probes that glide across surfaces, collecting data at rates exceeding 100 points per second. This enables measurement accuracy of ±0.001 mm on complex freeform surfaces such as turbine blade airfoils and implant contours. The inspection program runs automatically, eliminating operator variability.
What Tolerances Can CMM Inspection Validate?
CMM inspection covers the full GD&T (Geometric Dimensioning & Tolerancing) framework, verifying everything from simple size dimensions to complex geometric relationships between features.
| GD&T Control | What the CMM Checks |
| Flatness | Surface deviation across a plane |
| Parallelism | Alignment between two surfaces |
| True Position | Hole or feature location relative to datum |
| Concentricity | Centerline alignment of cylindrical features |
| Profile of a Surface | 3D form against the CAD model |
| Circular Runout | Radial deviation around a datum axis |
Each control is reported as a raw deviation value and a pass/fail verdict against the specified tolerance. When a dimension falls outside the band, the CMM flags it immediately, allowing quality engineers to evaluate rework potential.
CMM vs Traditional Inspection: Which Do You Need?
Choosing the right inspection method depends on tolerance requirements, part complexity, and production volume. The table below compares CMM inspection against the most common alternatives in CNC machining. For tight tolerances or multiple GD&T callouts, CMM delivers the broadest 3D verification in a single setup.
| Capability | CMM (Bridge) | Calipers | Micrometers | Optical Comparator | Go/No-Go Gages |
| Measurement Type | 3D contact/probe | 1D linear | 1D linear | 2D optical | Pass/fail |
| Typical Accuracy | ±0.001 mm | ±0.03 mm | ±0.005 mm | ±0.005 mm | ±0.01 mm |
| GD&T Verification | Full | None | None | Limited | None |
| Complex Geometry | Yes | No | No | Moderate | No |
| Data Collection | Automated digital | Manual read | Manual read | Visual | Manual |
| Cycle Time (50 features) | 3–8 min | 15–25 min | 20–30 min | 10–15 min | 5–10 min |
| Automation Ready | Yes | No | No | Partial | No |
As the comparison shows, CMM offers the broadest capability — full GD&T, complex geometry, and automated data logging — while keeping per-part cycle times low at production volumes. MW+ uses CMM as the primary method for first article inspection and lot sampling, supplemented by handheld tools for simple dimensions where speed matters more than depth.

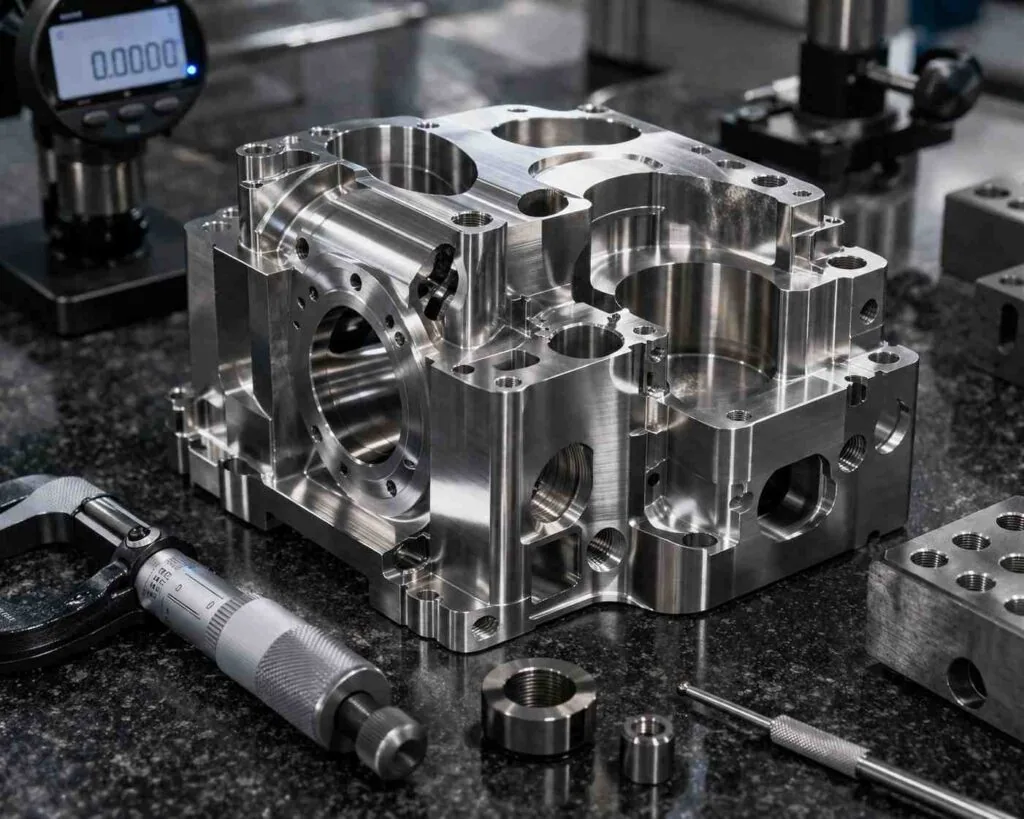

What Does a CMM Inspection Report Include?
A standard CMM report from MW+ contains three sections:
- Part Information. Part name, material, drawing revision, order number, and the relevant ISO or AS9100 standard applied.
- Feature Measurements. Every critical dimension listed with nominal value, actual measured value, deviation, tolerance band, and pass/fail result.
- Summary. Overall verdict, number of features inspected, pass/fail count, and the inspector’s approval signature.
Reports are delivered as PDF with raw measurement data available on request. This documentation satisfies AS9100D record-keeping requirements and provides your quality team with a verifiable audit trail.
Why Aerospace and Medical Manufacturers Require CMM Reports
Aerospace and medical device manufacturers operate under strict regulatory frameworks that demand objective evidence of part conformance. FDA 21 CFR Part 820 (medical) and AS9100D (aerospace) both require documented inspection results for every critical feature.
The CMM report serves as that evidence. It proves each feature — hole diameter, surface profile, thread position — was measured against a traceable standard and found to be within tolerance. MW+’s certifications include ISO 9001:2015, AS9100D, ISO 13485, and IATF 16949, covering aerospace, medical, automotive, and general industrial applications.
Beyond compliance, the report helps your team close out purchase orders faster. Instead of inspecting every part on arrival, you can rely on the CMM data and perform a reduced receiving inspection — saving time and cost.
Metalworks Plus – Precision Manufacturing & CNC Machining Expert
MW+ is a precision manufacturing company specializing in high-quality CNC machining and custom metal fabrication solutions from prototype to full-scale production. Founded in China, the company combines advanced technology with rigorous quality control to serve industries such as aerospace, automotive, medical, electronics, and industrial equipment.
💡 Learn more: https://metalworksplus.com
Services
- CNC Machining Services – full‑service precision machining
- Multi‑Axis Machining – 3/4/5‑axis milling
- Micro‑Machining Services – ultra‑fine tolerances
- Swiss Machining – Swiss turning for slender parts
- CNC Milling Services – complex contours & surfaces
- CNC Turning Services – cylindrical & tapered profiles
- Electric Discharge Machining – EDM for hardened steels
- Laser Cutting Services – high‑speed sheet cutting
- CNC Prototyping – rapid prototyping in days
- Machine Parts Manufacturing – custom structural & functional parts
Products
- CNC Precision Parts – tight‑tolerance components
- Connector & Machined Pins – custom pins for assemblies
- Machine Parts – housings, brackets, shafts, gears
How MetalworksPlus Integrates CMM into Production
At MW+, CMM inspection is integrated into the production workflow from day one. Every production run follows this quality path:
- Material Inspection — verify certificate and incoming dimensions
- In-Process Checks — operator gauging during machining
- First Article Inspection — full CMM measurement of the first part
- Lot Sampling — CMM inspection per AQL sampling plan
- Final Review — report generation and QA sign-off
This integrated approach catches any machining drift early, before it affects an entire batch. MW+ invites customers to review CMM reports before shipment and request additional inspection points at no extra charge for qualified production runs.
Frequently Asked Questions
Q: What is the typical accuracy of a CMM?
- A: Bridge-type CMMs achieve accuracy within ±0.001 mm under controlled temperature conditions.
Q: How long does a CMM inspection take?
- A: A part with 50 critical features typically requires 3–8 minutes of CMM cycle time.
Q: Do I need to request CMM reports separately from MW+?
- A: MW+ includes CMM inspection on all critical dimensions by default and provides reports on request at no additional cost.
Q: Can CMM replace manual inspection entirely?
- A: For complex parts with tight tolerances and GD&T callouts, yes. Simple dimensions may still be faster with handheld tools.
Q: Does CMM work on all materials?
- A: Yes — aluminum, steel, titanium, brass, plastics, and composites are all measurable with the appropriate probe force.
Q: What is the difference between CMM and a vision system?
- A: A CMM measures physical contact points in 3D; a vision system captures 2D images. CMM is preferred for depth and geometric tolerances.
CMM inspection of CNC machining parts provides the measurement accuracy and full documentation that precision industries demand. By verifying every critical dimension against the CAD model and producing a detailed dimensional inspection report, it eliminates guesswork from the approval process and gives your quality team the data they need to release parts with confidence.
MetalworksPlus integrates CMM inspection into every order — from aerospace brackets to medical implants. Request a quote or upload your CAD file to receive a free dimensional review with your first article inspection.
